Sampling and Laboratory Supplies
Aerobiology Research designs and develops all the products and supplies needed for laboratories to collect and analyze pollen and fungal spores in air samples. See our list below and contact us if you have any questions, comments or concerns.
USD prices are approximate and will be priced based on current trading rates.
Retracting Sampling Heads
Our retracting sampling heads are made of corrosion-resistant materials, and spring-loaded to extend the sampling rods under centrifugal force during sampling and retract them for protection while the sampler is at rest. Fits “Type-I” rods.
- 130.00 CAD

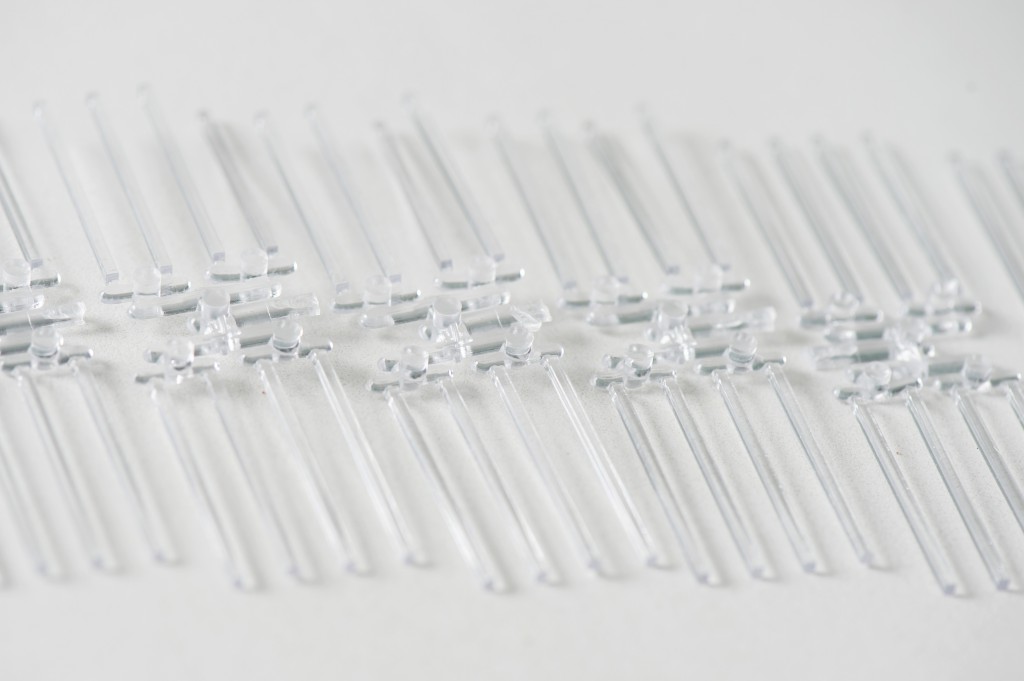

Sampling Rods
Injection-molded clear plastic rods, 1.59mm x 1.59mm x 32mm. These “Type-I” rods have a small nub that can be used as a reference point to determine the collection side of the sampling rod. Rods are available ungreased in packages of 100, or pre-greased in larger quantities.
SPECIFICATIONS
100 ungreased rods – $98.00 CAD ($72.93 Approximately)
- 98.00 CAD

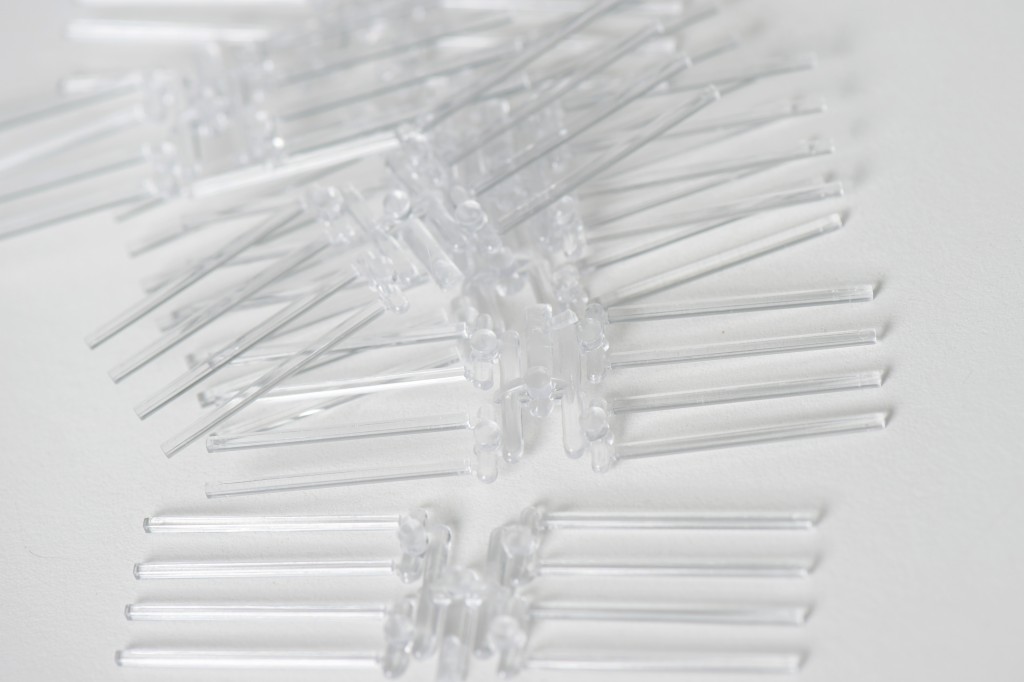

Pre-Greased Sampling Rods
Pre-greased sampling rods – Injection-molded clear plastic rods, 1.59mm x 1.59mm x 32mm. These “Type-I” rods have a small nub that can be used as a reference point to determine the collection side of the sampling rod. Pre-greased rods are available in larger quantities than the ungreased rods.
SPECIFICATIONS
(Note – pre-greased rods require the purchase or supply of a storage tray for shipping)
Pre-greased rods – $1.30 each ($.97* USD approximately)
100 pre- greased rods – $130 CAD ($96.89* USD approximately) (tray extra)
420 pre-greased rods – $530.00 CAD ($392.84* USD approximately) (tray extra)
- 130.00 CAD

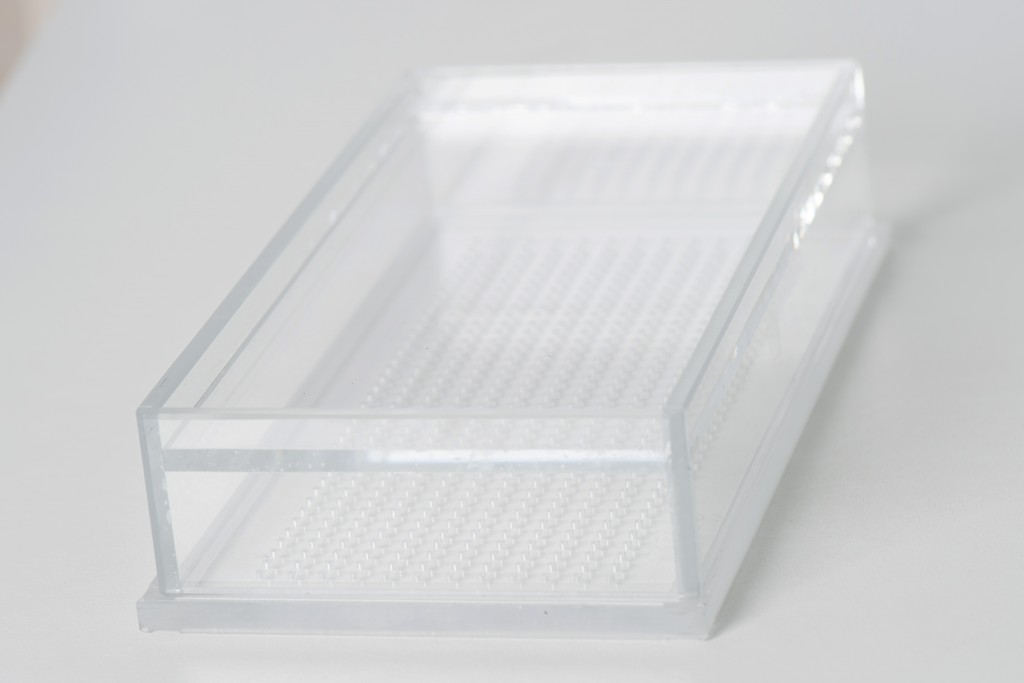

Sampling Rods Storage Tray
Machined from one-quarter-inch thick Lexan, these trays are durable, stackable, and hold up to 420 “Type-I” rods
SPECIFICATIONS
(12 rows by 35 columns)
- 158.00 CAD

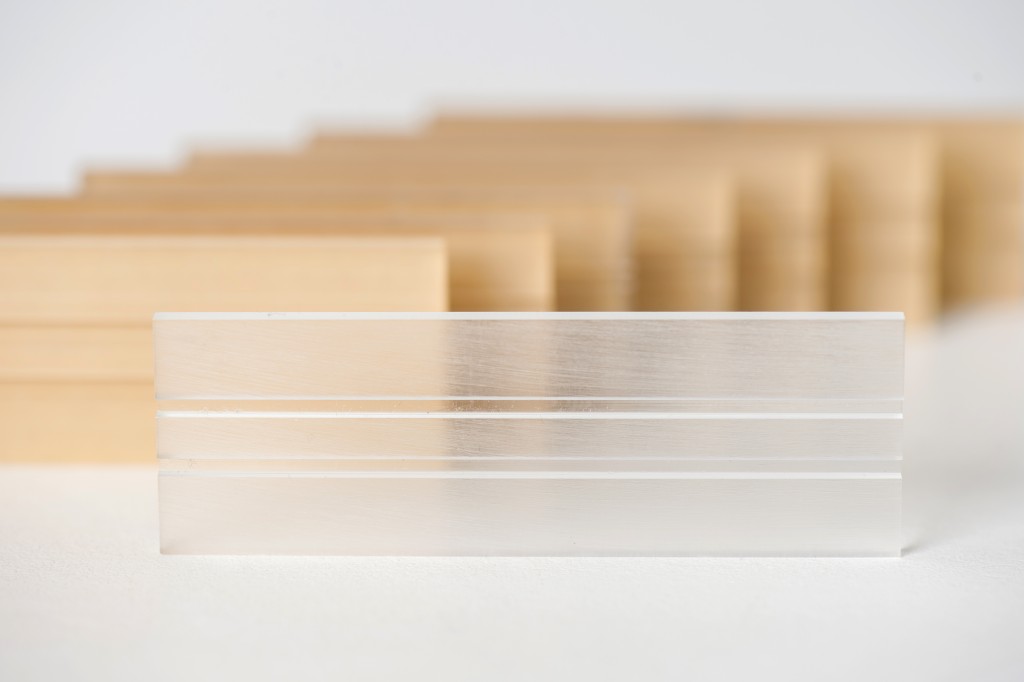

Sampling Rod Slide
Microscope slide used for mounting sampling rods for analysis, sometimes referred to as a microscope stage adaptor. This clear plastic slide is machined with two polished grooves so that up to two “Type-I” rods (1.59mm width) can be analyzed at a time.
SPECIFICATIONS
76mm x 35mm x 3mm.
- 18.50 CAD

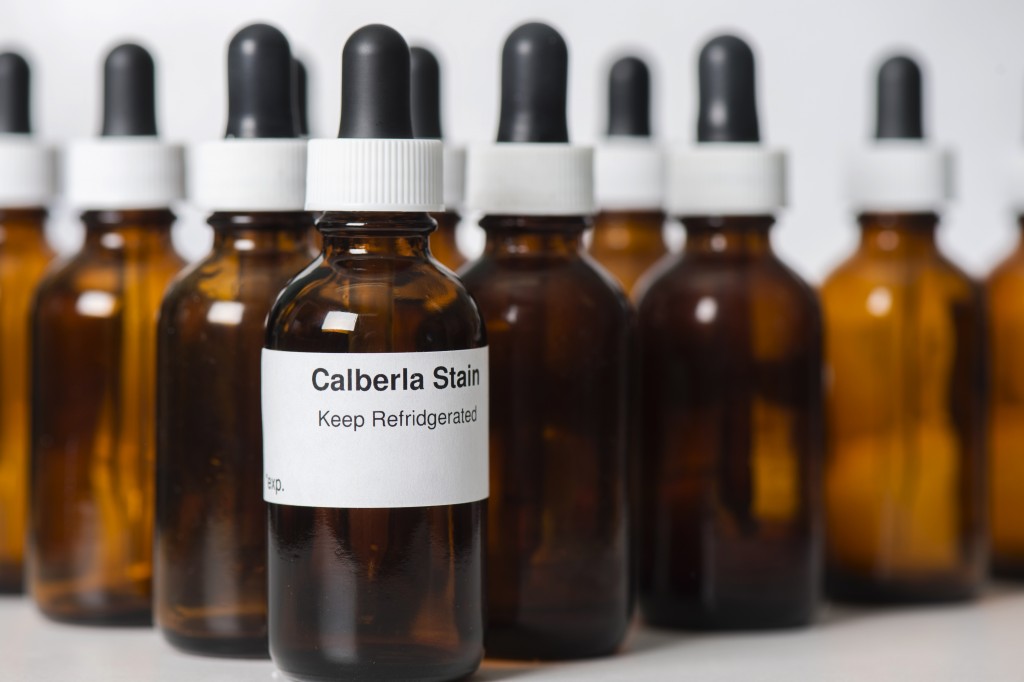

Calberla's Stain
An aqueous mountant containing Basic Fuschin, which colours pollen to aid in identification during microscopic analysis.
SPECIFICATIONS
50mL bottle
- 53.00 CAD

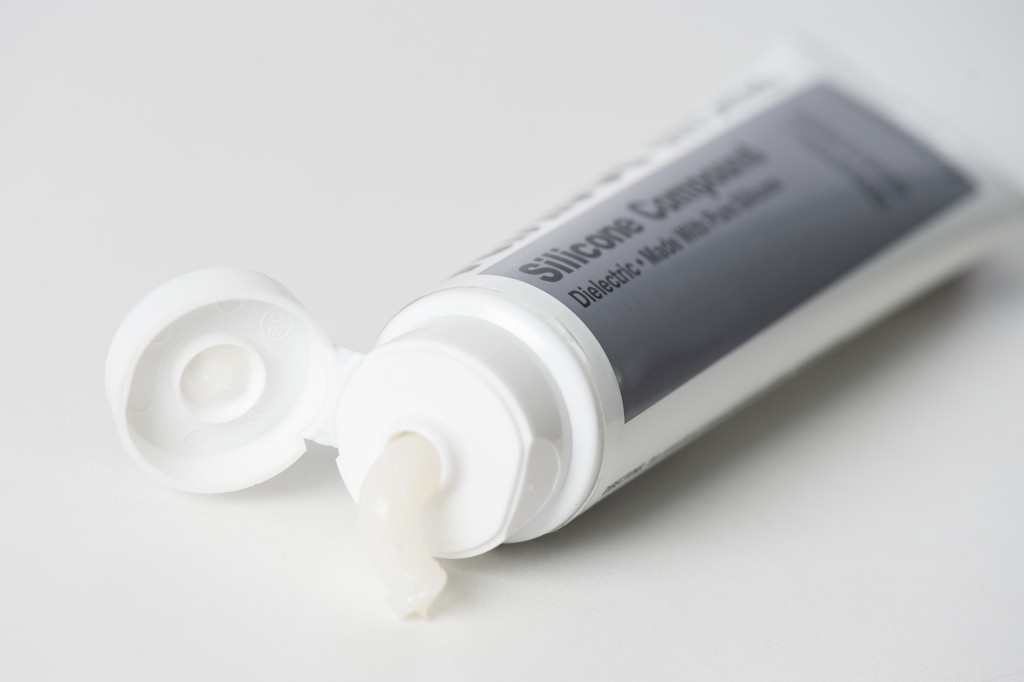

Silicone Compound
This silicone grease is highly recommended for use as the embedding medium on sampling rods.
SPECIFICATIONS
5.3oz tube.
- 55.00 CAD

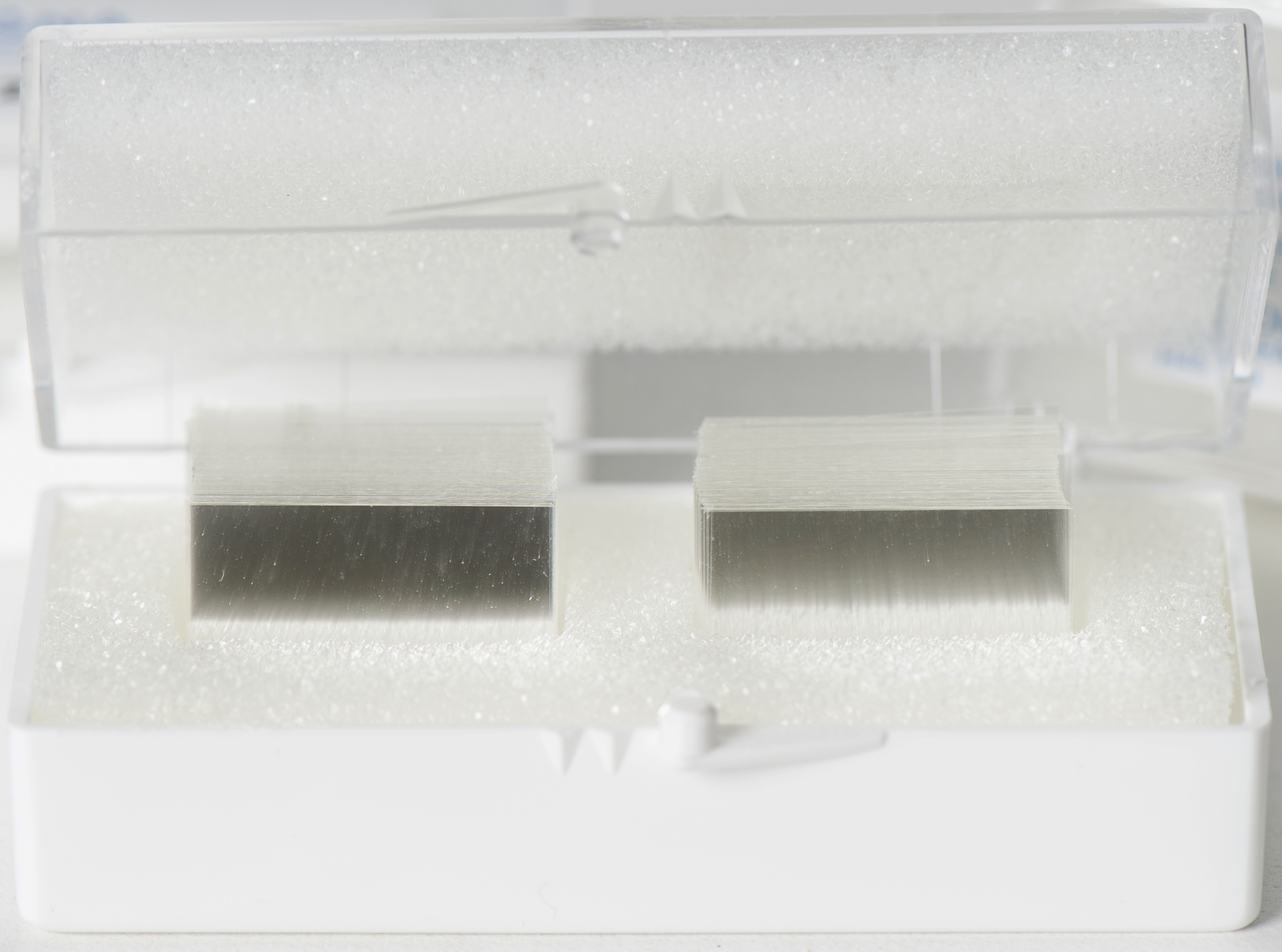

Glass Cover
For customers convenience, we sell generic glass covers suitable for use in the microscopic analysis of rotation-impaction samples.
SPECIFICATIONS
Cover glass, #1, 22mm x 22mm, 1oz case
- 23.00 CAD

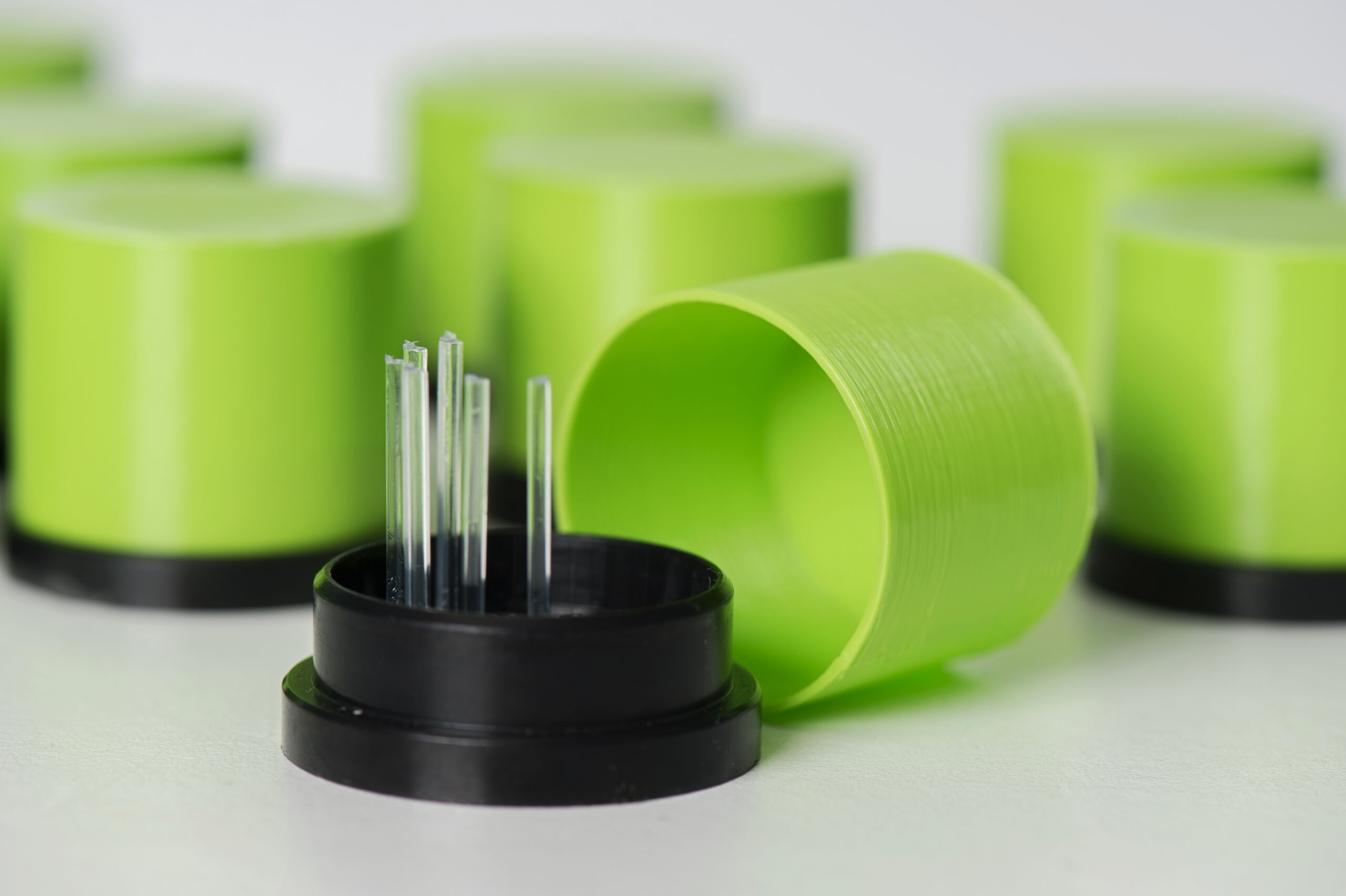

12-Rod Vial Replacement Lid - Package of 4
Have a bunch of bases for 12 rod sample vials, but the lids are broken? We’ve started 3D printing of lids out of PVA plastic that’s stronger than the original. Specifications: Lid only – no vial bases available for sale. Colour may not be as shown.
SPECIFICATIONS
Lid only – no vial bases available for sale.
Colour may not be as shown.
Price is based on individual lids.
- 10.00 CAD
GRIPST-2009
The GRIPST-2009 is our flagship sampler. This model is designed for long-term aeroallergen monitoring projects. The compact sampler casing is constructed from galvanized steel, with a tightly-closing hatch for easy access to the sampler internals. All exterior components are rated NEMA-4 or better. This model includes a super-heavy-duty maintenance-free Maxon motor for extended life, and a voltage regulator that provides stable rotation speed for any >12VDC power source and the ability to adjust and calibrate rotation speed to suit the needs of the monitoring project. This sampler incorporates a solid-state relay timer that allows the sampler to be set to any desired duty cycle, and is equipped with a 1.5″ long sampling head mounting post, C&C machined, to reduce air turbulence.
SPECIFICATIONS
Dimensions: 16cm x 18cm x 16cm (including post)
Weight: 2.5 kg
Input Power: DC 12V to 30V, 300mA
Power Plug: Banana jacks, screw clamp
Sampler comes with an auto-retracting sampling head for “Type-I” sampling rods, and a package of 100 “Type-I” rods. Samplers are shipped calibrated to 2400RPM, and set to a 10% duty cycle (one minute on, nine minutes off) when applicable. Power cord must be purchased separately.
- 1732 CAD

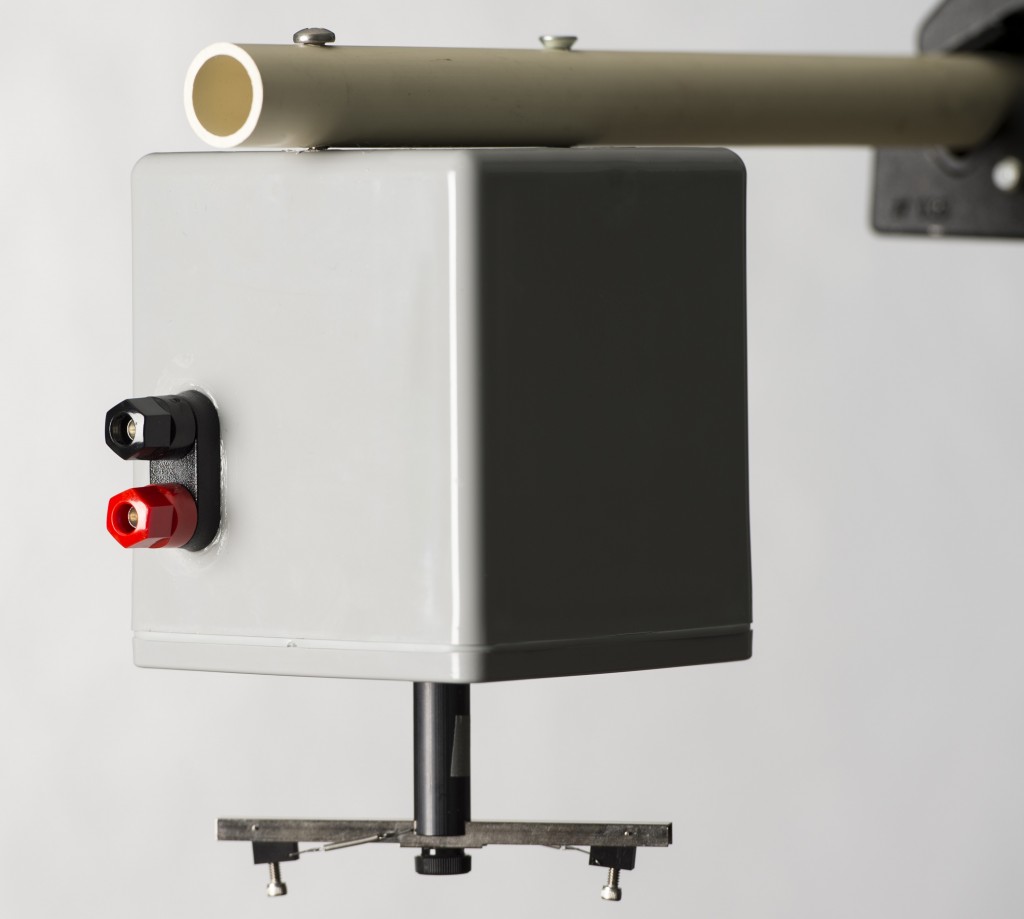

GRIPS-99M
The GRIPS-99M, as with its predecessor GRIPS-99, is targeted primarily for agricultural uses and other qualitative sampling applications. Featured components include a rugged, waterproof PVC plastic casing suitable for all types of extreme weather, a rain shield roof to protect samples from wash off, a super-heavy-duty maintenance-free Maxon motor for extended life, and voltage regulator that provides constant rotation speed for any >12VDC power source and allowing for adjustment and calibration. This sampler is equipped with a one and one-half inch sampling head mounting post, designed to reduce air turbulence and thus optimize pollen and fungal spore collection. The post has been C&C machined for balance to reduce motor wear.
SPECIFICATIONS
Sampler comes with an auto-retracting sampling head for “Type-I” sampling rods and a package of 100 “Type-I” rods.
Samplers are shipped calibrated to 2400RPM.
Power cord must be purchased separately.
- 855 CAD

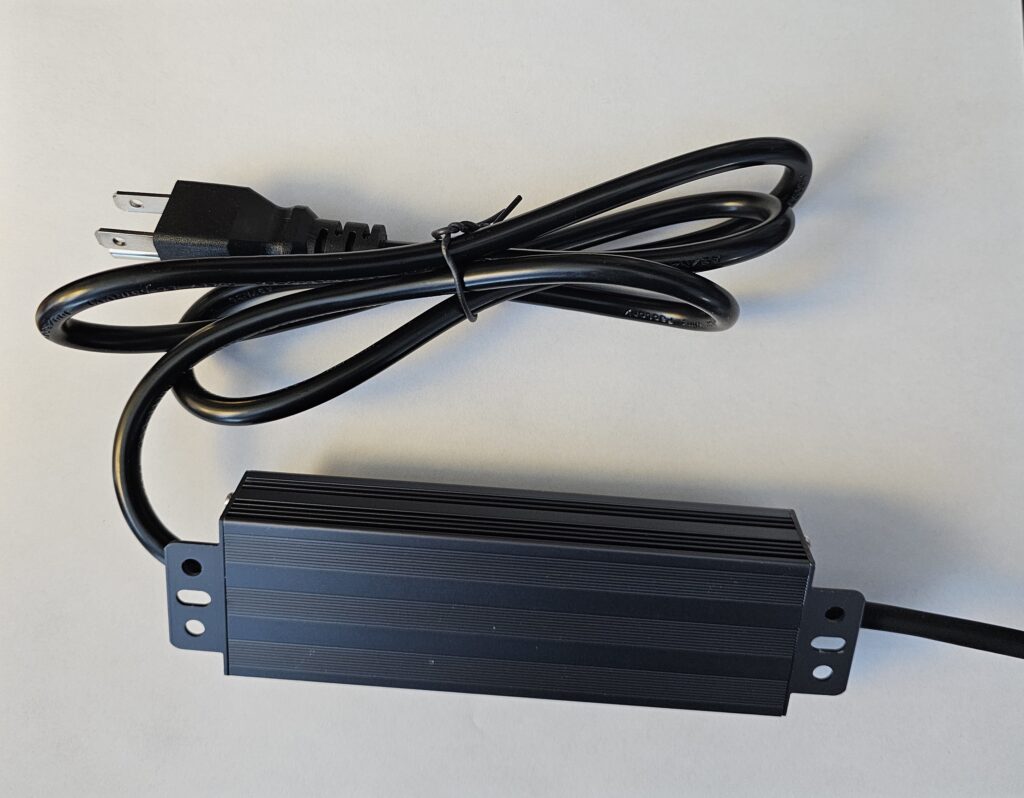

Sampler Supplies - Cords and Adapters
24V 60W Waterproof 5-foot long grounded extension cord with adapter.
SPECIFICATIONS
Input Power: AC90-265V 50/60HZ | AC1-1.2A | 70.1W
Output Power: DC24V+/- 0.5V | DC 2.5A | 60.63W
- 45.00 CAD
